3D scanning for aftermarket wheels solves one of the most precise fitment problems in automotive customization: getting a custom wheel design to clear brakes, suspension components, and wheel wells without trial-and-error test fitting. The geometry involved — hub bore, bolt pattern, offset, brake caliper clearance, suspension travel — is unforgiving. A few millimeters of error in any direction means the wheel either doesn’t fit or rubs under load.
Scanning captures all of that geometry accurately before any design work begins, which is what makes it the right starting point for serious aftermarket wheel projects.
What 3D Scanning Actually Does for Wheel Fitment
A 3D scan of a wheel well, hub assembly, and surrounding suspension components produces a complete spatial reference model of the envelope a wheel must fit within. That model captures the actual geometry of the specific vehicle — not the nominal specification from a factory drawing, but the real dimensions of that car, including any variations from production tolerances, suspension modifications, or body changes.
From that reference model, a wheel designer can work with confidence. Offset, backspacing, and spoke geometry can be developed within the actual clearance envelope. The brake caliper model — whether stock or upgraded — sits in context with the hub and suspension, so clearance to the inner barrel can be verified digitally before the wheel is manufactured. Suspension travel can be simulated through its range to confirm nothing contacts under compression or droop.
The result is a wheel designed to fit the car it’s going on, not a wheel designed to nominal spec and then test-fit in hopes it clears.
Reverse Engineering Existing Wheels
Aftermarket wheel projects often start not with a blank canvas but with an existing wheel that needs to be replicated, modified, or used as a design reference. 3D scanning is the most efficient way to capture that geometry accurately.

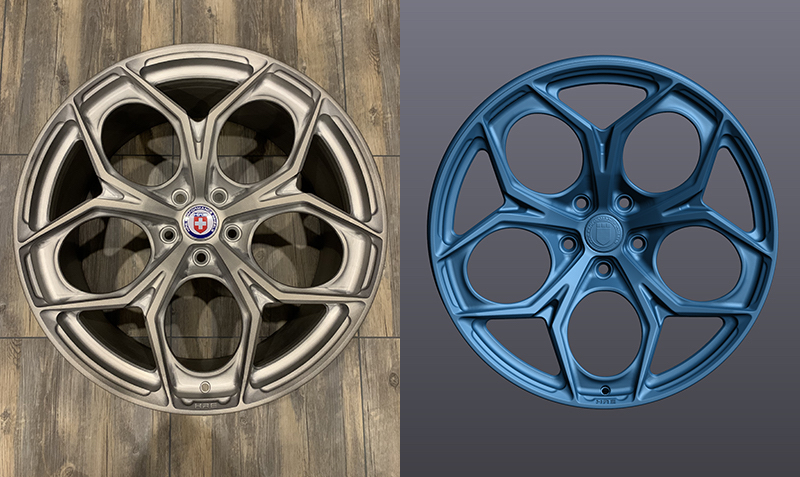

Scanning a wheel produces a complete digital model of the spoke design, face contours, barrel profile, and mounting surface. That model can be used directly as a manufacturing reference, converted to a clean parametric CAD model through reverse engineering, or used as the starting point for a modified design that retains certain design elements while changing others.
For heritage and vintage vehicle fitment — where original wheels are no longer available and correct period appearance matters — scanning an original wheel and reproducing it in the correct size and offset is a common application. The scan preserves every detail of the original design in a form that can be reproduced precisely.
The Workflow: From Scan to Finished Wheel
A typical aftermarket wheel project using 3D scanning runs through several stages:
Scan capture. The wheel well, hub, brake assembly, and any relevant suspension components are scanned. For projects involving a wheel redesign rather than pure fitment work, an existing wheel may also be scanned as a design reference. Our structured light scanning systems capture these assemblies at sub-millimeter accuracy — sufficient for the fitment tolerances involved in wheel design.
CAD model development. Scan data is converted into a clean CAD model that serves as both the clearance reference and the manufacturing model. For fitment reference, the scan mesh is often sufficient. For a wheel design that will go to manufacturing, a full parametric solid model is developed — one that can be modified, analyzed, and handed off to a manufacturer in a format they can use directly.
Design development and verification. The wheel design is developed within the clearance envelope. Fitment is verified digitally: hub bore, bolt pattern, centerline offset, and spoke-to-caliper clearance are all confirmed in the model before anything is manufactured. Changes are made in the digital model, not by cutting metal and test-fitting.
Manufacturing handoff. The final CAD model goes to CNC machining, casting, or forging depending on the wheel construction method. The scan data and clearance verification give the manufacturer and customer confidence that the finished wheel will fit correctly.
When Scanning Is the Right Call for a Wheel Project
Not every aftermarket wheel project requires 3D scanning. If you’re buying an off-the-shelf wheel in a standard fitment for a common platform, published specifications are sufficient. Scanning makes sense when:
- The vehicle has been modified — widened, lowered, or fitted with upgraded brakes — and the real clearance envelope differs from stock specifications
- The project involves a custom or one-off wheel design rather than an off-the-shelf fitment
- An existing wheel needs to be replicated, modified, or used as a design reference
- The fitment requirements are tight enough that test-fit iteration would be expensive or impractical
- The build quality and precision expected from the project justify getting the geometry right the first time
HRE Wheels, one of the most respected names in high-performance aftermarket wheels, has worked with precision scanning as part of their engineering process — and it’s the same approach we bring to custom and specialty wheel projects at Kemperle Industries.
Common Questions About 3D Scanning for Aftermarket Wheels
Can you scan a wheel well without removing the wheel?
In most cases, yes — though access to the full brake and suspension assembly is better with the wheel removed. For projects where full clearance mapping is important, scanning with the wheel off gives the most complete reference model of the actual fitment envelope.
What file format does the wheel design get delivered in?
Depending on what the downstream use requires: STL or OBJ for mesh reference models, STEP or IGES for parametric CAD models ready for CNC or casting manufacturing. We can deliver in the format your manufacturer or fabricator needs.
How accurate does the scan need to be for wheel fitment work?
For most wheel fitment applications, accuracy in the 0.1–0.3mm range is more than sufficient. Our structured light scanning systems achieve better than that under normal conditions. For projects with extremely tight brake caliper clearance — where a few tenths of a millimeter matters — we can discuss the specific accuracy requirements upfront.
Kemperle Industries provides 3D scanning services for automotive applications from our Brooklyn studio, with experience across custom builds, heritage vehicles, and performance applications. If you have an aftermarket wheel project that requires precise fitment geometry, get in touch and tell us what you’re working on. Call us at 718-557-9578.
