First article inspection — FAI — is the process of verifying that a newly manufactured part meets its design requirements before full production begins. It’s the quality gate between tooling or process setup and committing to a production run, and catching problems at this stage is many times cheaper than catching them after hundreds or thousands of parts have been made.
3D scanning has become the most capable and efficient technology for first article inspection on complex parts. Here’s why it’s displaced traditional contact measurement for many applications and what it offers that conventional CMM inspection doesn’t.
What First Article Inspection Is Actually Checking
FAI verifies that the manufacturing process — tooling, fixturing, machine settings, material, and process parameters — produces parts that conform to the engineering drawing or CAD model within specified tolerances. It’s not just dimensional: a complete FAI typically includes dimensional verification, material certification, surface finish, and functional performance as applicable.
The dimensional component is where 3D scanning contributes most directly. The question being answered is: does this physical part match the digital model it was supposed to be made from, within the tolerances specified?
How 3D Scan-Based Inspection Works
The process is straightforward in concept. The first article is scanned to capture its actual geometry as a precise point cloud and mesh. That scan data is then compared algorithmically against the nominal CAD model in inspection software, producing a deviation analysis — a full-surface map of where the part differs from the design, and by how much.

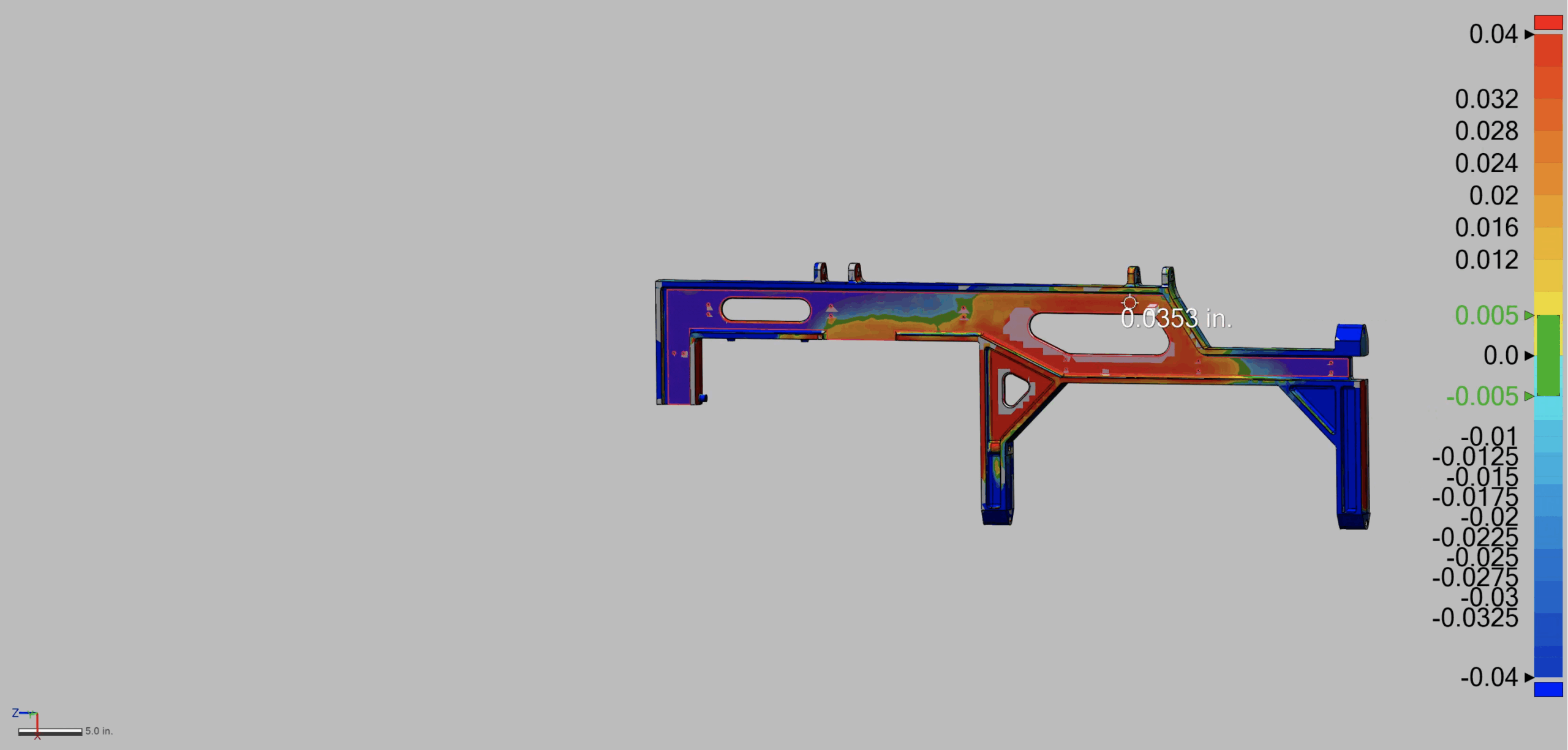

The output is a color-mapped visualization overlaid on the part geometry: green where the part is within tolerance, moving through yellow to red where it deviates beyond allowable limits. This makes the inspection results immediately interpretable — a quality engineer, a toolmaker, or a production manager can look at the deviation map and understand exactly where the part is out of specification and by how much.
The Advantage Over Traditional CMM Inspection
Contact-based CMM (Coordinate Measuring Machine) inspection measures specific points on a part surface — typically the features explicitly called out on the engineering drawing. It’s precise and well-established, but it only measures what you tell it to measure.
3D scan-based inspection captures the entire surface simultaneously. For complex parts — castings, molded components, machined parts with compound surfaces — this full-surface approach reveals deviation patterns that point-by-point measurement would miss entirely. A subtle bowing across a face, a consistent undersize condition on a surface that wasn’t specifically toleranced, a localized deformation near a gate — these are the kinds of issues that full-surface scan inspection catches and targeted CMM measurement doesn’t.
Speed is the other significant advantage. A complex part that would require hours of CMM programming and measurement can be scanned and analyzed in a fraction of the time, without requiring a detailed measurement plan to be written before inspection can begin.
What Scan-Based FAI Is Best Suited For
- Cast and molded parts — Complex surface geometry, potential for localized defects, and the need to verify surfaces that aren’t easily accessible with a contact probe make these ideal candidates for scan-based inspection.
- Stamped and formed sheet metal — Springback and forming variation can produce subtle shape deviation across large surfaces. Full-surface scan inspection captures this; point measurement misses it.
- Machined parts with complex geometry — Particularly parts with sculptured surfaces, compound angles, or features at varied orientations that would require complex CMM fixturing.
- Organic and freeform geometry — Parts that derive from scan data or sculpted surfaces, where the nominal geometry is itself a surface model rather than a set of discrete features.
Integration with the Production Workflow
Scan-based FAI integrates naturally into a broader quality workflow. Deviation reports are documented and archived alongside the manufacturing records for the part. If a process change is made during production — a tooling adjustment, a machine repair, a material lot change — a follow-up scan provides immediate confirmation that the change produced the intended effect on part geometry.
