Reverse engineering vehicle panels is one of the most geometry-intensive applications in automotive fabrication. A body panel isn’t a simple shape — it’s a compound surface that curves in multiple directions simultaneously, transitions into adjacent panels with precise gaps and flushness, and carries styling lines that define the vehicle’s character. Getting the geometry right is the entire job. And getting it right starts with 3D scanning.
Whether the goal is reproducing a discontinued OEM panel, creating a custom replacement, designing an aftermarket variant, or restoring a damaged original, the workflow is the same: capture the geometry accurately, develop a clean CAD model, and fabricate to that model. Each step depends on the one before it — and the scan is the foundation everything builds on.
Why Vehicle Panel Geometry Is So Demanding
Factory body panels are developed over years of iterative design and tooling refinement. The subtle crown in a hood, the precise curvature of a fender, the way a door transitions into the A-pillar — these are the result of deliberate engineering decisions that determine both aesthetics and fit. A panel that’s off by even a few millimeters reads as wrong, produces inconsistent panel gaps, and compromises the overall visual quality of the vehicle.
This is why templating by hand or working from measurements produces inferior results for panel work. Manual measurement accumulates error across complex surfaces, and the resulting model never fully captures the nuance of what was actually there. 3D scanning captures the complete surface geometry in a single pass — every point, every transition, every subtle feature — without the accumulated error of manual methods.
Scanning Existing Panels: The Baseline for Any Panel Project
For OEM reproduction, restoration, and custom variant work, scanning the surviving original panel (or an undamaged mirror panel from the opposite side) provides the geometric baseline. The scan captures the panel as it was designed — not as it’s described in partial documentation or approximated from photographs.
This is particularly important for classic and collector vehicles where original panels are no longer in production and the only surviving reference is the panel itself. Scanning before any work begins creates a permanent digital record — invaluable if the original is damaged during the project or needs to be reproduced again in the future.
For damaged panels, scanning an undamaged reference from the same vehicle (the opposite side, or a matching panel from another example) provides the target geometry that guides repair or reproduction. Our 3D scanning services capture this reference geometry at the resolution required for panel-level work.

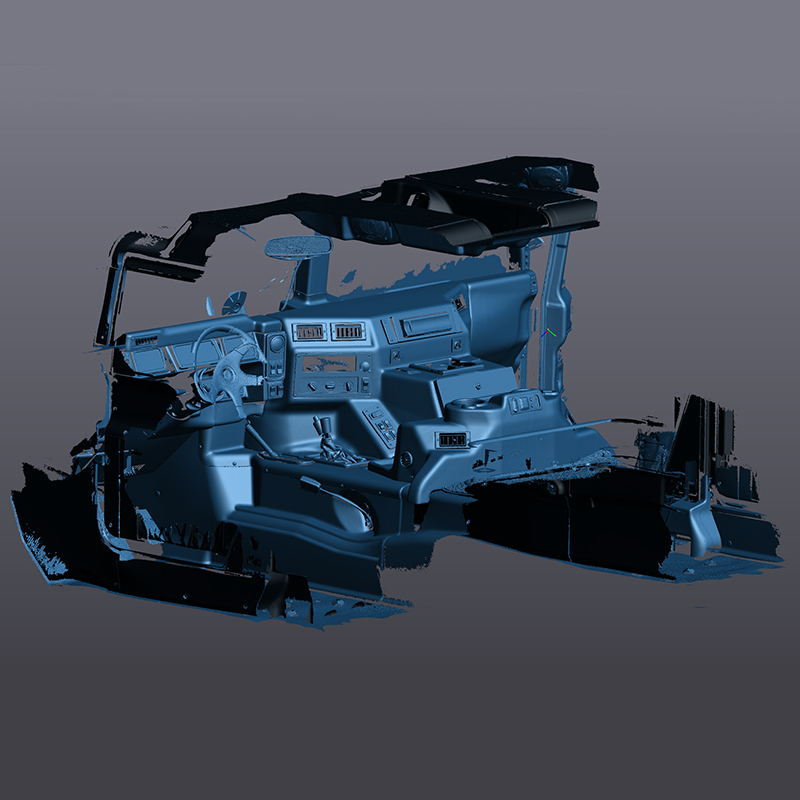

Scanning the Vehicle for Custom Panel Design
When the goal is designing a new custom panel — a widebody fender, a custom hood, a modified quarter panel — scanning the adjacent vehicle geometry is the starting point. The new panel has to integrate with everything around it: the rocker, the A-pillar, the door, the bumper cover. Designing against accurate scan data of the surrounding bodywork means those integrations are resolved correctly in the digital model before any material is cut.
This is where scan-based design produces the most visible payoff. Custom panels designed against real vehicle geometry fit correctly the first time. The gaps are consistent. The body lines flow through the new panel without interruption. The result looks designed, not fabricated.
Our reverse engineering workflow takes the scan data and develops it into a clean parametric CAD surface model — the foundation for mold tooling, CNC machining, or any other downstream fabrication process.
From Scan to Fabrication: The Panel Production Workflow
With a clean CAD model in hand, panel fabrication follows one of several paths depending on the material and production quantity:
- Fiberglass and composite panels require a plug and mold. The plug is CNC machined from the CAD model, finished, and used to produce a fiberglass mold. The mold then pulls production panels. This is the standard path for aftermarket body kit components and custom aero work. Our molding and casting services handle this full sequence.
- Metal panels — for restoration work or OEM-specification replacements — are formed over stamping dies or buck forms machined from the CAD model. Complex compound curves may require English wheel work or hand-shrinking against a CNC-machined form.
- Carbon fiber panels follow the same mold-based workflow as fiberglass but with prepreg layup and autoclave or vacuum-bag curing. The higher tooling cost is justified by the weight savings and finish quality for premium applications.
Our CNC machining capabilities produce the plugs, buck forms, and tooling fixtures that drive the fabrication process in each of these paths.
Quality Verification: Confirming the Panel Fits
After fabrication, scan-based inspection confirms that the finished panel matches the design intent — and fits the vehicle correctly. Scanning the produced panel and comparing it against the CAD model generates a deviation map showing exactly where the panel is within spec and where it needs adjustment. This is far more reliable than test-fitting by eye and provides documentation that the panel meets dimensional requirements before it goes to paint or delivery.
