A digital twin is an exact virtual replica of a physical object, system, or environment — one that can be analyzed, tested, and modified without touching the real thing. The concept has become foundational in modern manufacturing, engineering, and facility management. And at the heart of almost every digital twin project is 3D scanning.
Without an accurate starting point, a digital twin is just a model. 3D scanning provides that starting point — capturing real geometry as it actually exists, not as it was designed to exist. That distinction matters more than most people realize.
What Is a Digital Twin, and Why Does It Require Accurate Geometry?
A digital twin isn’t just a 3D model. It’s a living replica that reflects the true state of a physical asset — including wear, deformation, and variation from the original specification. For a digital twin to be useful for simulation, analysis, or predictive maintenance, it needs to match reality, not the original CAD drawing.
This is where 3D scanning becomes essential. Structured light scanning, laser scanning, and photogrammetry can all capture an object or environment as it currently exists, down to fractions of a millimeter. That scan data — whether delivered as a point cloud, mesh, or converted to a solid CAD model — becomes the foundation of a digital twin that actually reflects the physical world.
For legacy equipment, aging infrastructure, or manufactured parts that have accumulated tolerances over years of production, scanning is often the only way to get accurate geometry. No drawing exists, or the drawing no longer matches what’s on the floor.
How 3D Scanning and Reverse Engineering Feed the Digital Twin Process
The path from physical object to digital twin typically runs through reverse engineering. Here’s how it works in practice:

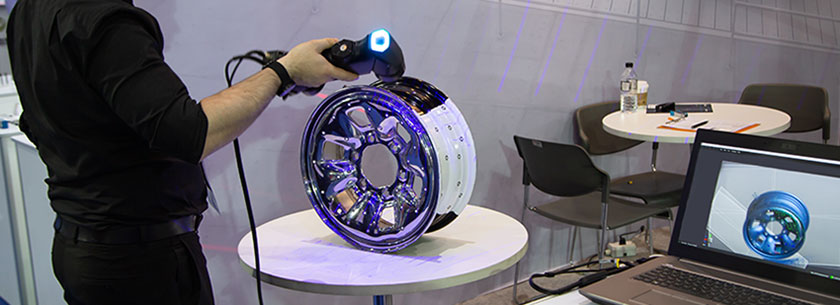

- Scan the physical asset. High-resolution 3D scanning captures the geometry of the object — external surfaces, internal features (with CT scanning where needed), and spatial relationships between components.
- Process the scan data. Raw scan data is cleaned, registered, and converted into a usable format — a polygon mesh for visualization or a solid NURBS/CAD model for engineering work.
- Build the parametric model. For a fully functional digital twin, the mesh is used as reference to build a clean parametric CAD model. This is the reverse engineering step — recreating design intent from physical reality.
- Populate the twin with metadata. Material properties, performance data, and maintenance history are attached to the geometry, creating a model that can simulate real-world behavior.
Our reverse engineering services cover this full workflow — from initial scan capture through to clean CAD deliverables ready for simulation, manufacturing, or digital twin integration.
Where Digital Twins Are Being Used Today
Digital twins are no longer a concept reserved for aerospace or automotive giants. They’re showing up across a wide range of industries:
Manufacturing: Equipment and tooling are scanned to create digital twins used for predictive maintenance and production simulation. Identifying wear patterns in a virtual model before they cause failure on the production floor saves significant downtime and cost.
Architecture and construction: Existing buildings are scanned to create as-built digital twins used for renovation planning, systems integration, and facility management. This is particularly valuable for historic structures where original drawings don’t exist or don’t reflect decades of modifications.
Automotive and aftermarket: Vehicle geometry is scanned to create accurate digital twins for fitment testing, custom part design, and performance analysis. In the aftermarket automotive space, this allows designers to develop components that fit precisely without requiring the physical car to be present throughout the design process.
Heritage and restoration: Cultural institutions scan artifacts and structures to create digital twins used for condition monitoring, restoration planning, and public access. The heritage and restoration work we do relies heavily on accurate scan-based geometry to guide fabrication of replacement and restoration elements.
The Difference Between a Scan, a Mesh, and a CAD Model in a Digital Twin Context
One source of confusion in digital twin projects is the difference between scan outputs. A point cloud or polygon mesh captures surface geometry faithfully but isn’t parametric — you can’t easily edit dimensions or run certain types of engineering analysis on it. A solid CAD model is editable and simulation-ready but requires additional work to produce from scan data.
The right deliverable depends on what the digital twin needs to do. Visualization and clash detection can work from a mesh. Finite element analysis and manufacturing output require a solid CAD model. Understanding this early shapes the entire project scope and cost. Our overview of 3D scan vs CAD model breaks this down if you need a clearer picture before scoping a project.
Getting Started with a Scan-Based Digital Twin Project
The first question isn’t “what scanner should we use” — it’s “what does this digital twin need to do?” The end use determines the required accuracy, the deliverable format, and the level of reverse engineering work involved. Starting with that question leads to a more focused scope and a better outcome.
If you’re working on a project that requires accurate digital geometry of existing physical assets — whether for simulation, fabrication, maintenance planning, or archive — talk to our team. We’ve been doing scan-to-CAD and reverse engineering work in Brooklyn for over 40 years, and we know how to scope these projects to deliver what the downstream workflow actually needs.
