A 3D scan captures an object’s surface geometry, but it does not create an editable, manufacturable CAD model. Scan data (typically mesh files like STL or OBJ) lacks parametric features, tolerances, and design intent. To modify, reproduce, or manufacture a part reliably, scan data must be translated into a structured CAD model. Understanding the differences between 3D scan vs CAD model is essential for effective engineering workflows.
“If you can scan it, you can reproduce it.”
It sounds logical. A high resolution 3D scan captures every curve and surface detail. On screen, the file can look complete, even indistinguishable from a finished model.
But a clean scan is not the same as a usable part definition.
A 3D scan captures geometry.
A CAD model defines how that geometry is meant to function, fit, and be manufactured.
That distinction becomes critical the moment you try to modify, replicate, or produce something at scale.
At Kemperle Industries, we treat scanning as the first step in an engineering workflow — not the final deliverable — because geometry alone doesn’t reduce downstream risk.
Table of Contents
What You Actually Get From a 3D Scan
Professional 3D scanning typically produces:
- A point cloud (millions of measured spatial points)
- A mesh file (commonly STL or OBJ)
- A surface representation of the object as it physically exists
What it does not include:
- Editable features
- Parametric dimensions
- Tolerances
- Material assumptions
- Design intent
Scan data is inherently non-parametric. It is a collection of triangles describing shape — not logic.
This is why a scan can look perfect and still be difficult or impossible to edit.
For example, with a raw mesh file you generally cannot:
- Adjust a hole diameter cleanly
- Change wall thickness
- Define concentric or perpendicular relationships
- Suppress or modify features without distortion
- Generate reliable production drawings
A mesh describes what is there.
It does not define what is supposed to be there.
That difference is critical in manufacturing.
Why Manufacturers Reject “Perfect” 3D Scans
It’s not uncommon for a client to send a clean STL file to a machine shop, only to have it rejected.
The issue is not visual quality. It’s engineering definition.
Manufacturers require:
- Feature-based geometry (STEP, SolidWorks, etc.)
- Defined tolerances
- Clear relationships between critical surfaces
- Confidence that the model reflects intended function
A raw mesh captures real-world geometry exactly as it exists including wear, distortion, shrinkage, or accumulated modification.
If a shop machines directly from that file, they are reproducing physical artifacts, not controlled design intent.
For example:
- A legacy automotive bracket may have sagged over time.
- A cast component may show surface variation from the original mold.
- An exhibit mounting interface may have been manually adjusted onsite.
Manufacturing from that data without interpretation compounds error.
Reputable shops protect against this risk. That is why they ask for a clean, parametric CAD model.

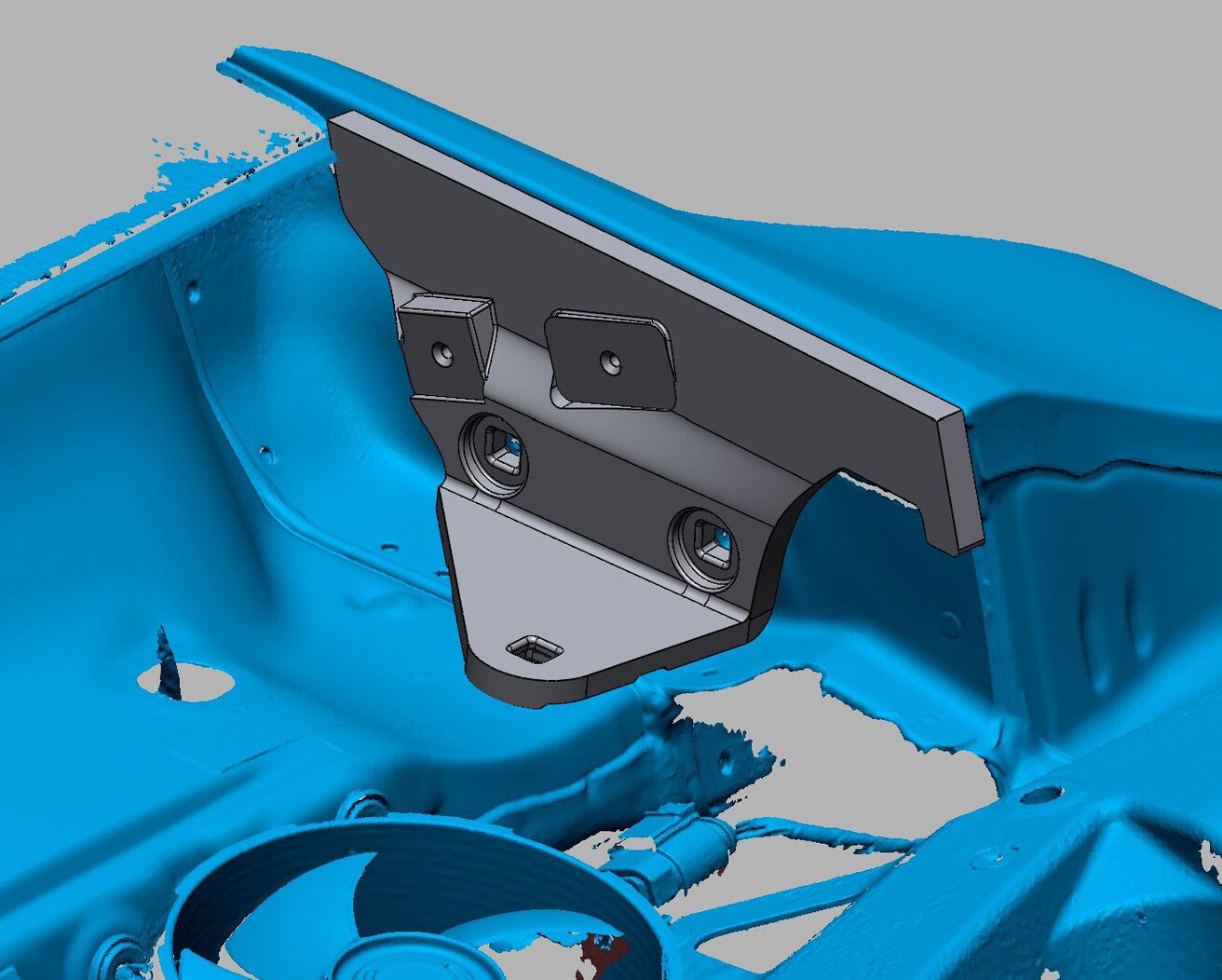

3D Scan vs CAD Model: The Structural Difference
Although they may look similar visually, scan data and CAD models are fundamentally different data types.
| 3D Scan Data | CAD Model |
|---|---|
| Mesh-based (triangles) | Feature-based (parametric geometry) |
| Captures existing shape | Defines design intent |
| Difficult to edit | Fully editable |
| No tolerances embedded | Explicit tolerances defined |
| Snapshot of current condition | Controlled, manufacturable definition |
| Suitable for visualization & archival | Suitable for manufacturing & modification |
A mesh does not “know” that a surface is cylindrical, concentric, or aligned to a reference axis. It is simply a dense collection of triangles.
A CAD model encodes logic:
- This bore is concentric to this shaft
- This wall is 4mm thick
- These surfaces are perpendicular
- This interface controls installation alignment
That logic is what allows:
- Clean modification
- Material changes
- Small-batch scaling
- Simulation and validation
- Reliable production handoff
Scan data captures reality. CAD restores control.
When a 3D Scan Is Enough — and When It Isn’t
In some cases, scan data alone is appropriate.
A 3D scan may be sufficient for:
- Digital preservation and archives
- Museum documentation
- Visualization and rendering
- Previsualization for experiential design
- Reference geometry for surrounding design work
In these scenarios, the goal is documentation.
However, if the objective includes:
- Manufacturing a replacement part
- Modifying geometry
- Improving fit
- Scaling to production
- Changing materials
- Ensuring precise installation
Then a raw mesh file is rarely sufficient. The determining factor is not scan resolution. It is whether the geometry must support downstream decisions.
From Geometry to Engineering Definition
Reverse engineering is the translation layer between scan data and manufacturing.
This process involves:
- Interpreting functional geometry
- Rebuilding clean surfaces
- Establishing reference planes and axes
- Removing accumulated wear and distortion
- Defining critical features parametrically
- Assigning tolerances appropriate for production
This is where geometry becomes a usable model.
At Kemperle Industries, this workflow is especially relevant in projects involving:
- Legacy automotive components with no original drawings
- Large-scale sculptural and architectural elements
- Installation-critical exhibit and scenic builds
- Complex geometries where fit and alignment matter
Our approach combines high fidelity structured light and laser scanning with controlled CAD reconstruction to ensure that digital models are not only accurate but actionable.
Book a Consultation
If you’re considering 3D scanning, the most important question is not how detailed the scan will be.
It’s what you need the data to do.
If your goal involves manufacturing, modification, replication, or installation-critical fabrication, the transition from scan data to a defined CAD model should be planned from the outset.
We’re happy to discuss:
- Whether scan data alone is appropriate
- When reverse engineering is required
- What file formats manufacturers will expect
- How to reduce production risk before fabrication begins
A clean scan has value. A defined model makes decisions possible.
Frequently Asked Questions about 3D Scan Data and CAD Models
What is the difference between a 3D scan and a CAD model?
A 3D scan captures an object’s surface geometry as a mesh file (such as STL or OBJ). A CAD model is a parametric, feature-based representation that defines dimensions, tolerances, and design intent. Scan data describes shape; CAD defines how the part is meant to function and be manufactured.
Why can’t I 3D print directly from a scan?
You can sometimes 3D print from a scan file, but raw mesh data lacks editable features and tolerances. If the part needs modification, scaling, material changes, or precise fit, scan data must first be converted into a parametric CAD model through reverse engineering.
Why do manufacturers reject STL files?
STL files are mesh-based and do not contain feature definitions, tolerances, or engineering intent. Manufacturers typically require parametric CAD formats such as STEP or native SolidWorks files to ensure dimensional control, modification capability, and reduced production risk.
What file format do manufacturers prefer instead of STL?
Most manufacturers prefer neutral CAD formats such as STEP (.step or .stp) or native parametric files (e.g., SolidWorks). These formats preserve feature structure and allow dimensional editing, tolerance assignment, and production validation.
When is reverse engineering required after 3D scanning?
Reverse engineering is required when a scanned object must be modified, reproduced, manufactured, or scaled. This process translates mesh geometry into an editable CAD model with defined features, reference geometry, and tolerances suitable for fabrication.
